Pallet guide · dimensions

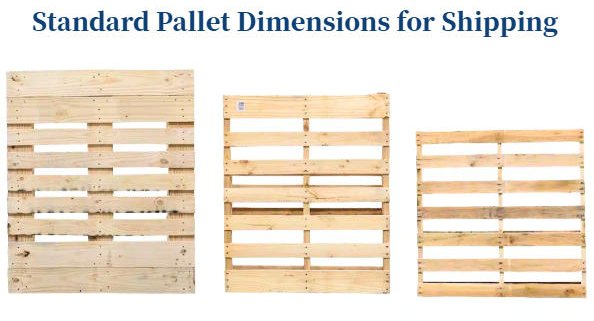

Pallet Dimensions and Standard Sizes

The size of a pallet decides how it fits in trucks, racks and containers. This chart lists the standard pallet dimensions used in Europe and worldwide, with heights, weights and typical uses.

Request a quote Load capacity chart

Euro, industrial and half
ISO and CP formats
Heights and weights

Most used sizes

Euro pallet: 1200 × 800 mm
Industrial pallet: 1200 × 1000 mm
Half pallet: 800 × 600 mm
CP3 / CP9: 1140 × 1140 mm

Quick answer: The standard euro pallet measures 1200 × 800 × 144 mm. The industrial pallet measures 1200 × 1000 mm, and the half pallet 800 × 600 mm. Outside Europe, the ISO standard lists six sizes, including 1219 × 1016 mm (48 × 40 in) in North America and 1100 × 1100 mm in Asia.

European pallet sizes

The formats you will meet most often in Belgium and neighbouring countries.

Pallet	Dimensions (L × W × H)	Weight	Typical use
Euro pallet (EPAL 1)	1200 × 800 × 144 mm	about 25 kg	Road transport, retail, warehousing
Industrial pallet (EPAL 2)	1200 × 1000 × 162 mm	about 35 kg	Heavy and bulky goods
Industrial pallet (EPAL 3)	1000 × 1200 × 144 mm	about 30 kg	Bags, drums, building materials
Half pallet (EPAL 6)	800 × 600 × 144 mm	about 9.5 kg	Retail display, small loads
Display pallet (EPAL 7)	800 × 600 × 163 mm	–	Retail display

Source: EPAL product data. Unbranded pallets with the same footprint may differ in height and weight.

ISO standard pallet sizes

ISO 6780 lists six pallet footprints used in international trade.

Dimensions (mm)	Dimensions (in)	Main region
1200 × 800	47.2 × 31.5	Europe
1200 × 1000	47.2 × 39.4	Europe, Asia
1219 × 1016	48 × 40	North America
1165 × 1165	45.9 × 45.9	Australia
1100 × 1100	43.3 × 43.3	Asia
1067 × 1067	42 × 42	North America, Europe, Asia

CP pallet sizes (chemical industry)

Nine standard formats used by chemical and plastics producers.

Type	Dimensions (mm)	Height (mm)
CP1	1000 × 1200	138
CP2	800 × 1200	138
CP3	1140 × 1140	138
CP4	1100 × 1300	138
CP5	760 × 1140	138
CP6	1200 × 1000	156
CP7	1300 × 1100	156
CP8	1140 × 1140	156
CP9	1140 × 1140	156

Uses and details per type in our CP pallet sizes guide.

How to choose the right pallet size

Start from your product and your transport, not from the pallet. The right size is the one that carries your goods without overhang and fills your trucks and racks with the least wasted space.

Retail and road transport in Europe: the euro pallet fits 33 to a 13.6 m trailer.
Wide, heavy or bagged goods: the industrial pallet gives 25% more deck area.
Chemicals and plastics: the CP pallet your plant or customer specifies.
Shop-floor displays: the half pallet.
Anything else: a custom pallet built to your dimensions.

Check how many pallets fit your vehicle in our pallets per truck guide.

Pallet dimension questions

What are the dimensions of a euro pallet?

A euro pallet (EPAL 1) measures 1200 × 800 mm and is 144 mm high. It weighs about 25 kg.

What size is an industrial pallet?

1200 × 1000 mm. The EPAL 2 version is 162 mm high; the EPAL 3 version (1000 × 1200 mm) is 144 mm high.

What is the standard pallet size in the USA?

The most common North American pallet is 48 × 40 inches (1219 × 1016 mm), also known as the GMA pallet.

What size is a half pallet?

800 × 600 mm, exactly half of a euro pallet.

Can you make pallets in other sizes?

Yes. We build custom pallets to your dimensions, from 100 pallets.
